Product Overview

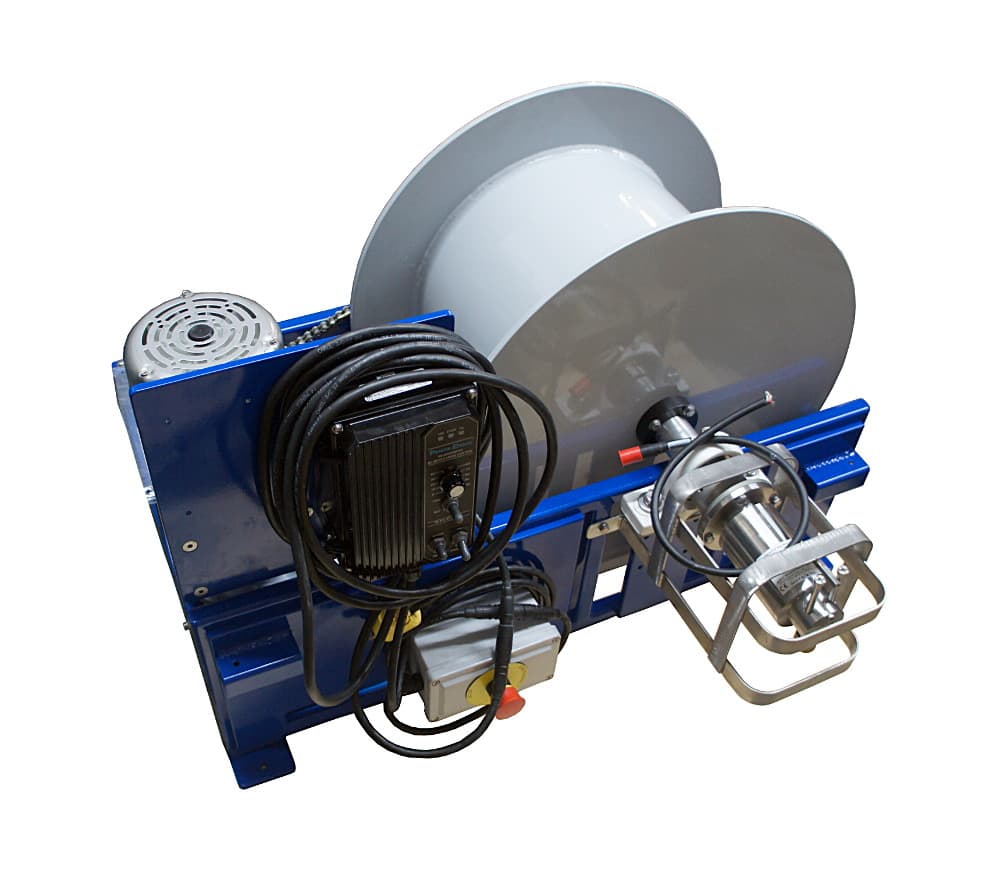

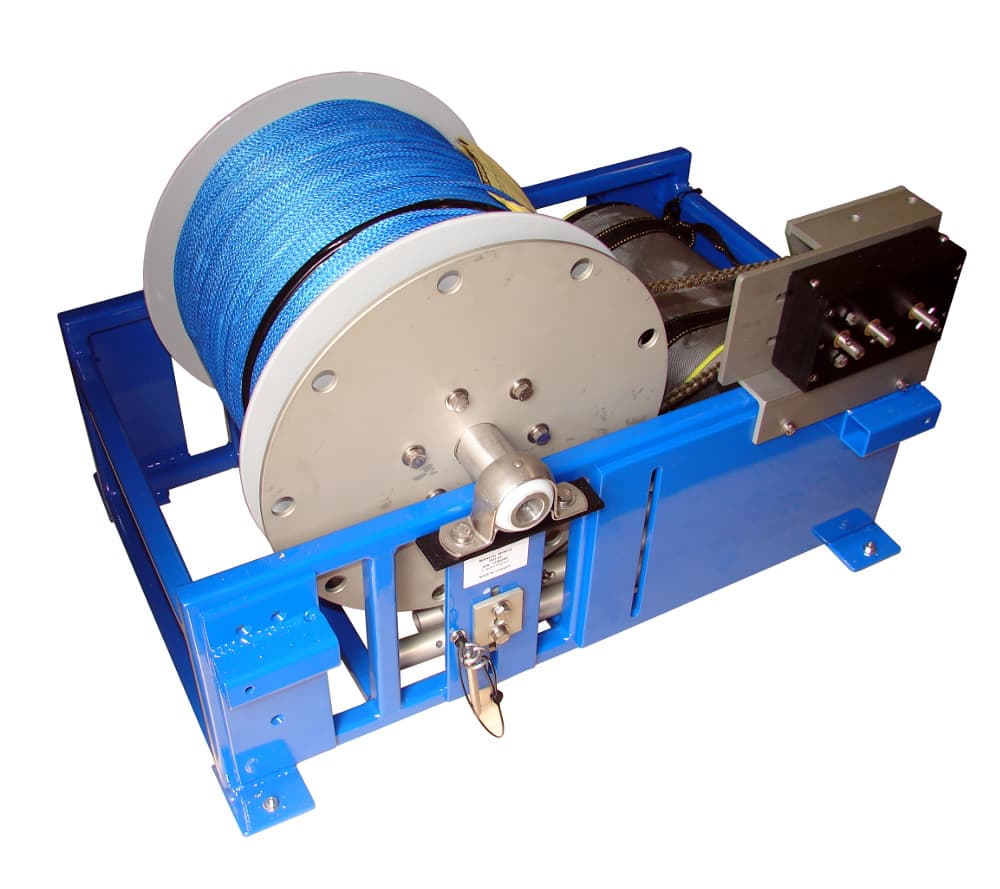

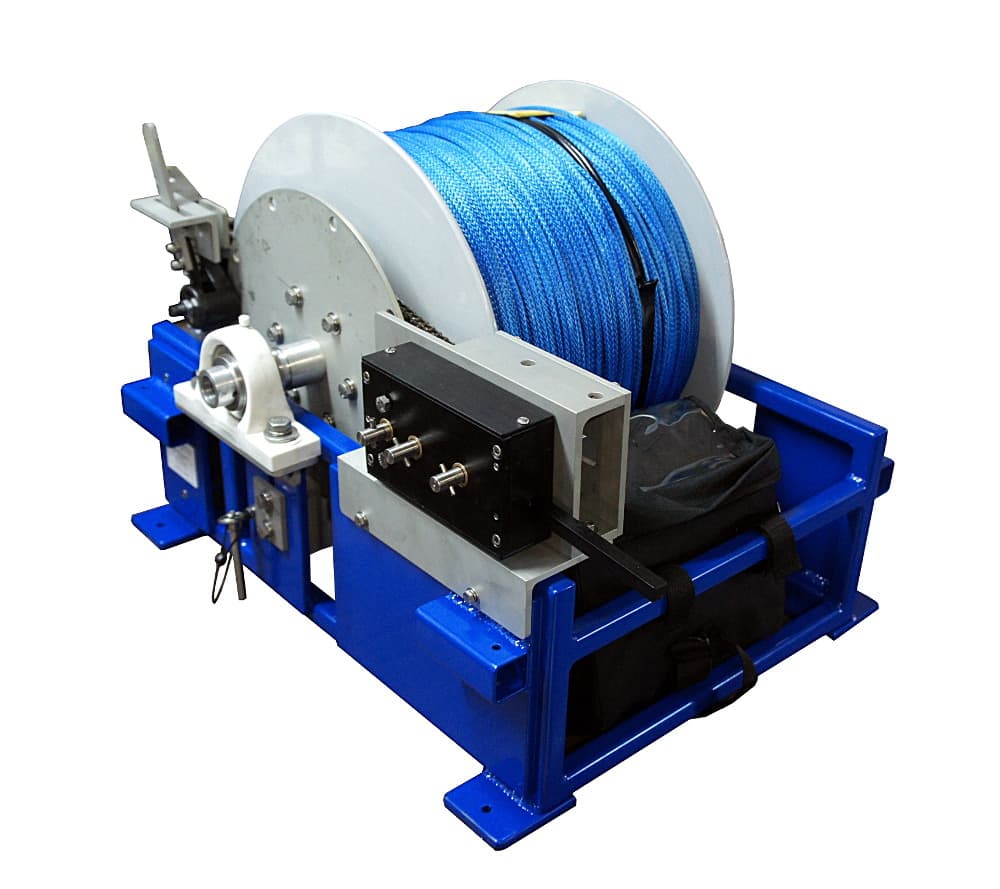

The PID-02 is a one-man portable winch designed for oceanographic and geophysics research applications. This versatile model is capable of lifting and lowering small instrument payloads. It is a lightweight and compact unit with a drum capacity of up to 1500 m of 1/8” (3 mm) wire-line. Please contact us for more information on load pull and line speed.
With a sturdy welded aluminum tubular frame and drum, the PID-02 winch is easy to transport in small boats and in small aircraft.
Motor Variants:
- 0.5 HP to 2 HP permanent magnet motor @ 90/180 VDC with regenerative drive controller powered from 110/220 VAC single phase (generator, inverter or ship's power)
- 0.125 HP to 1 HP permanent magnet motor @ 12/24/48 VDC with PWM drive controller powered from 12-48 VDC batteries
- Manual drives with two-speed or three-speed gearboxes
- Auxiliary gas or electric drill adaptor for the manual drive gearboxes
