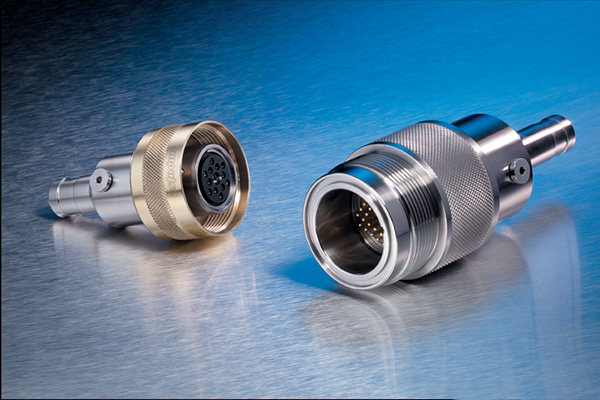

Product Overview

Designed for rugged military, commercial, aerospace, and marine applications, the metal shell series is a versatile, yet durable choice for power in harsh environments. For high pressure applications, the Metal Shell series can be used in pressures up to 20kpsi.

316 stainless steel passivated per QQ-P-35 Type VI with naval bronze engaging nut. Optional material is (MSA) 6061-T6 Aluminum, hard anodized per MIL-A-8625, Type III, Class 2. Special alloys are available upon request.

Contains a removable glass reinforced epoxy insert (with the exception of the MSSJ/MSAJ). Pressure rating in mated condition ranges from 10,000 PSI to 20,000 PSI (higher pressure rating available using special alloy metal shell; please contact factory).

Key Features

  • Connectors configurable with one to 96 contacts 316 stainless steel construction standard, other materials available.
  • Cable connector plugs and receptacles can be overmolded using neoprene or polyurethane
Impulse Metal Shell Connector Series by Teledyne
