Product Overview

The CSW-6 is a portable electric winch designed for oceanographic and geophysics applications. It comes as a complete package, including a range of standard features only available as options on our other winches. It is capable of lifting and lowering many instrumentation payloads. Please contact us for more information on load pull and line speed.

Applications: Small side scan sonar, water sampling, towed instrument sleds, environmental and pipe line monitoring, lightweight grab samplers, small capture nets, subsea video, CTD profiling.

Motor Variants:

  • 1.0 HP to 2.0 HP 3-phase AC motor and outdoor rated AC Vector Drive (VFD) Controller, powered by 110 VAC, 230 VAC (single phase) or 240 VAC (3-phase)
  • 0.5 HP to 2 HP permanent magnet motor @ 90/180 VDC (2 HP @ 180 VDC only) with regenerative drive controller powered from 110/230 VAC single-phase (generator, inverter or ship's power)
  • 0.125 HP to 1 HP permanent magnet motor @ 12/24/48 VDC with PWM drive controller powered from 12-48 VDC batteries

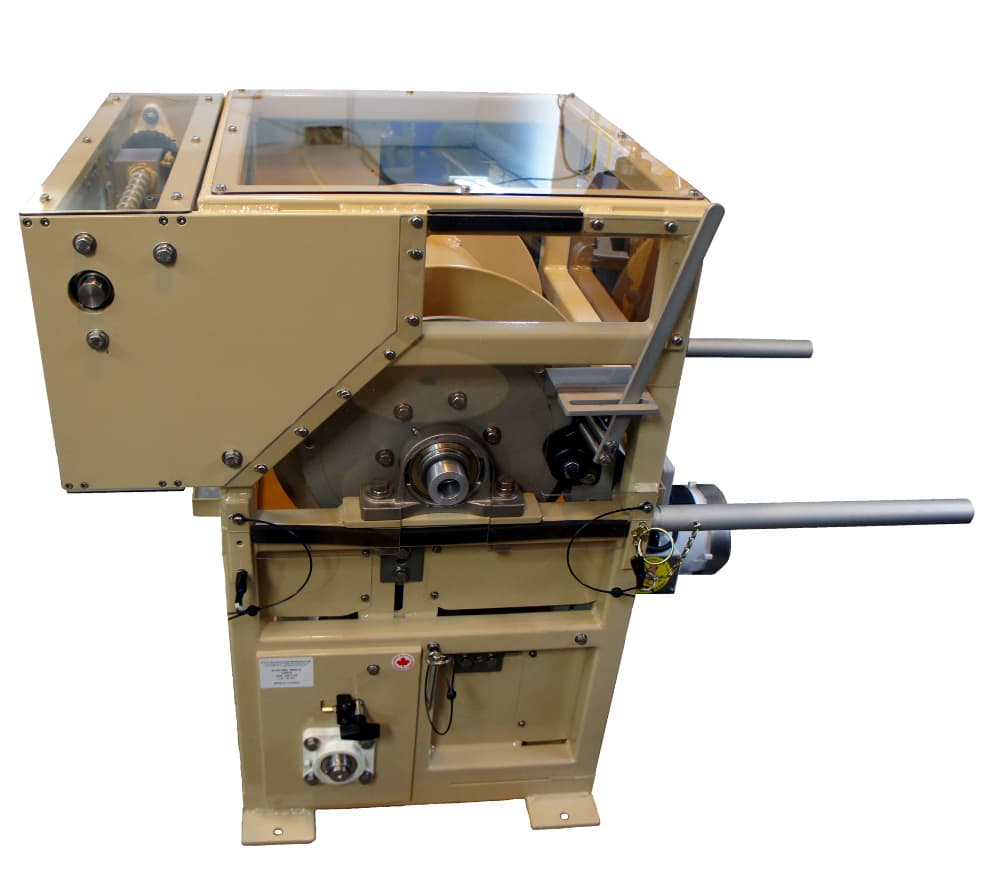

CSW-6 AGO Electric Winch
